Channel Lining
Ancillaries Calculator

What are the known dimensions? (Click on Icon)

Alternative dimensions

Width (m)

Depth (m)

Invert (m)

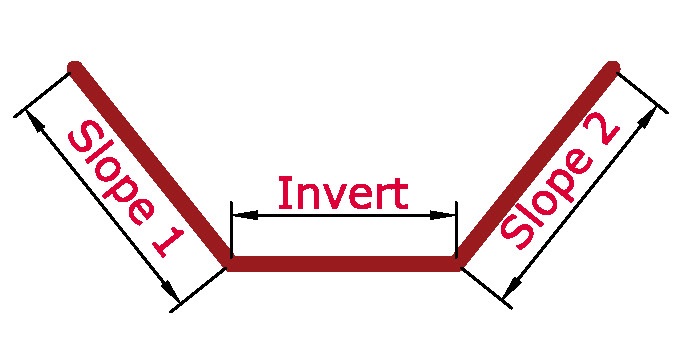

Slope 1 length (m)

Anchor trench?

Anchor Trench 1 (m) Pegs?

Slope 2 length (m)

Anchor trench?

Anchor Trench 2 (m) Pegs?

Invert (m)

Channel length (m)

Material

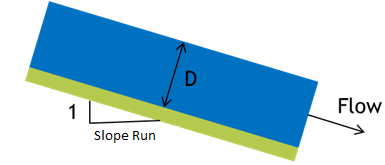

Channel slope run:

Width (m):

Depth (m):

Invert (m):

Variable	Value	Unit
Each side slope length	0	m
Manning's Roughness	0.011	m
Wetted perimeter	0	m
Cross sect'n flow area	0	m
Hydraulic radius	0	m2
Flow Rate (Q)	0	m3/sec
Flow Velocity (V)	0	m/sec
Shear Force (τ)	0	N/m2

Channel parameters

Parameter	Value
Material	0
Length (m)	0
Profile Width (m)	0
Area (SQM)	0
Distance between screws (cm)	0

Your Channel Diagram

Transverse (0 Layers)

Using Bulk Rolls


	Amount	Weight (kg)
Material to order (SQM)	0	0
Steel pegs (every overlap)	0	0
Screws	0	0
Sealant 290ml Cartridges @ 1 bead (Optional)	0
Sealant 290ml Cartridges @ 2 beads (Optional)	0
Total Weight		0
Min Water Requirement		0

Using Batched Rolls


	Amount	Weight (kg)
Material to order (SQM)	0	0
Steel pegs (every overlap)	0	0
Screws	0	0
Sealant 290ml Cartridges @ 1 bead (Optional)	0
Sealant 290ml Cartridges @ 2 beads (Optional)	0
Total Weight		0
Min Water Requirement		0
Channel profile width (m)	0
Full sections per batched roll	0
Waste per batched roll (m)	0

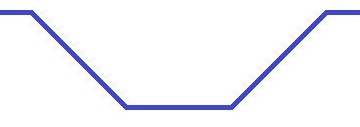

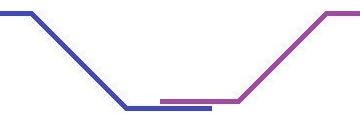

Longitudinal (Use 0 Layers)


	Amount	Weight (kg)
Material to order (SQM)	0	0
Steel pegs (every 2 metres)	0	0
Screws	0	0
Sealant 290ml Cartridges @ 1 bead (Optional)	0
Sealant 290ml Cartridges @ 2 beads (Optional)	0
Total Weight		0
Min Water Requirement		0
Channel profile width (m)	0
Maximum material span (m)	0
